BI Pixie Workload in Microsoft Fabric
Public Preview

Set up BI Pixie Dashboard

The BI Pixie Dashboard is a Power BI report that turns your engagement data into insights about how your audience uses your reports. It shows which reports get viewed, which visuals get clicked, who returns, and where users focus their attention, so you can see what is delivering value and where to iterate next.

User satisfaction, survey analysis, data auditing, and row-level security are all covered in the same dashboard. See the BI Pixie Dashboard walkthrough for a full tour of every page and metric.

BI Pixie installs the Dashboard in your Fabric workspace automatically when you create the BI Pixie item. Before the Dashboard can show your engagement data, there is a short one-time setup in Power BI.

What gets installed

The Dashboard installs in the background as soon as you create the BI Pixie item. The install takes about 60 seconds, and the BI Pixie item shows live progress while it runs.

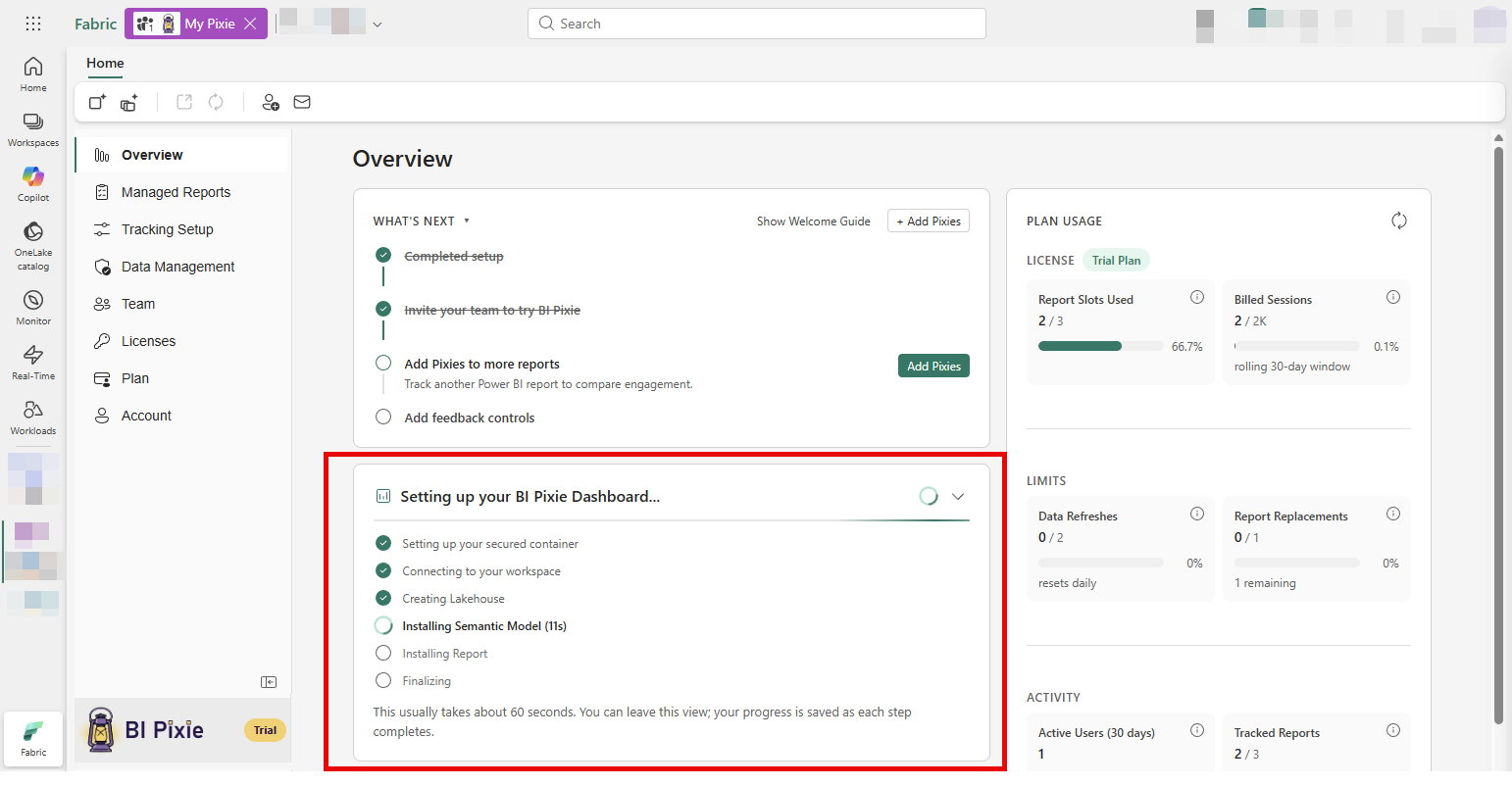

BI Pixie item Overview view with an install progress card highlighted, showing six steps: Setting up your secured container (done), Connecting to your workspace (done), Creating Lakehouse (done), Installing Semantic Model (active, 11 seconds elapsed), Installing Report (upcoming), and Finalizing (upcoming). Caption reads: This usually takes about 60 seconds. You can leave this view; your progress is saved as each step completes.

When it finishes, you will find a new BI Pixie folder in your Fabric workspace containing three items:

  • A Lakehouse called BI_PIXIE_Lakehouse. It includes a OneLake shortcut to your BI Pixie telemetry data.
  • A Semantic Model called BI Pixie Dashboard.
  • A Power BI report called BI Pixie Dashboard. This is the dashboard you open to see your engagement insights.

Connect BI Pixie to its data sources

In the BI Pixie item's Overview, find the BI Pixie Dashboard card and click Open dataset settings. This jumps you straight to the Power BI dataset settings page, so you do not need to navigate through the workspace, folder, and semantic model.

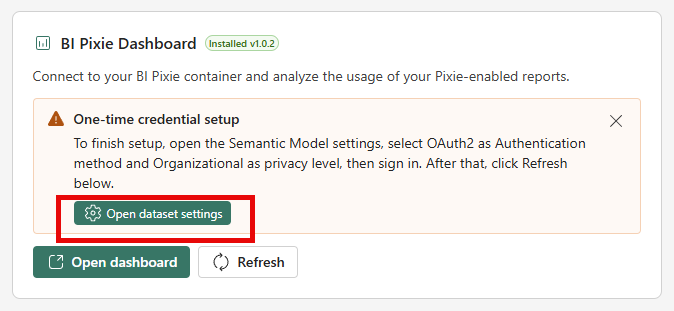

BI Pixie Dashboard card in the BI Pixie item's Overview view, with a One-time credential setup banner above an Open dataset settings button highlighted with a red box. Open dashboard and Refresh buttons appear below the banner.

On the Power BI dataset settings page, expand Data source credentials. You will see two rows. Both need credentials applied.

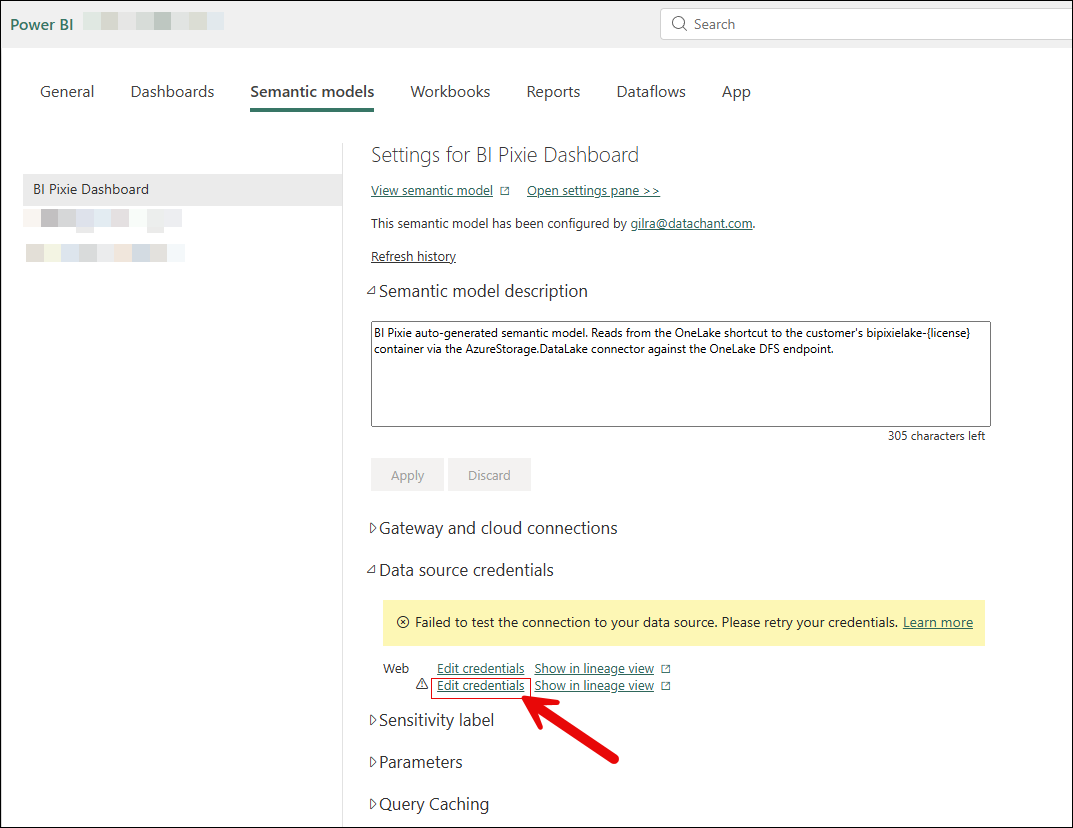

Power BI semantic model Settings page with the Data source credentials section expanded, showing two rows that need Edit credentials applied. A yellow 'Failed to test the connection' warning is visible above the rows and a red arrow points at the second Edit credentials link.

The yellow Failed to test the connection to your data source banner is expected at this point — it clears once both credentials are saved.

  1. Click Edit credentials on the first row (Web).
  2. Set Authentication method to Anonymous.
  3. Set Privacy level setting for this data source to Organizational.
  4. Click Sign in to save.

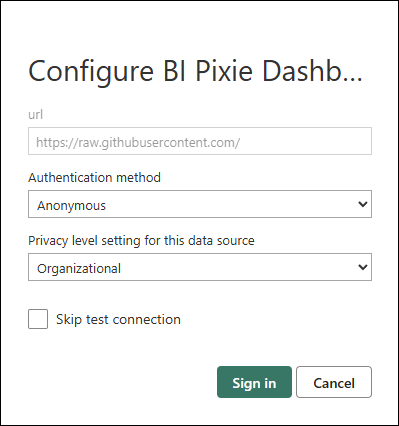

Configure BI Pixie Dashboard credentials dialog showing the url field set to https://raw.githubusercontent.com/, Authentication method set to Anonymous, Privacy level setting set to Organizational, and a Sign in button.
  1. Click Edit credentials on the second row (the one flagged with the warning triangle).
  2. Set Authentication method to OAuth2.
  3. Set Privacy level setting for this data source to Organizational.
  4. Click Sign in. A Microsoft sign-in window opens. Use your organizational account (the same one you use for Fabric).

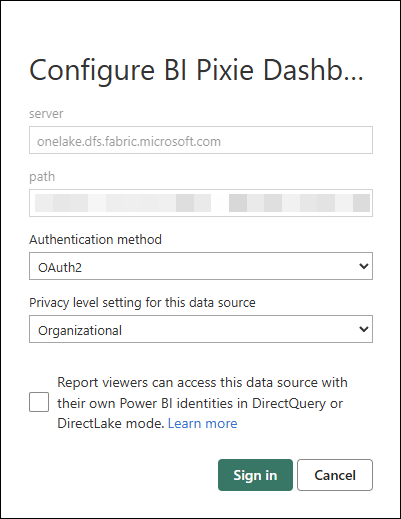

Configure BI Pixie Dashboard credentials dialog showing the server set to onelake.dfs.fabric.microsoft.com, a path field, Authentication method set to OAuth2, and Privacy level setting set to Organizational, with Sign in and Cancel buttons.

Finish

After both credentials are saved, return to the BI Pixie item in Fabric and click Refresh in the Overview, or open the report directly. The dashboard will pull fresh engagement data.

If the yellow Failed to test the connection banner is still showing on the credentials page after both steps, check that no row in the list still carries a warning triangle. A row that opens a different dialog (no Authentication method dropdown) means the source type doesn't match this guide — reach out to support.

Schedule data refresh

To keep the dashboard up to date with the latest engagement data, configure a scheduled refresh on the semantic model in your Fabric workspace.

  1. In the Fabric workspace, find the BI Pixie Dashboard semantic model.
  2. Click the three-dot menu and select Settings.
  3. Expand the Refresh section and toggle Scheduled refresh on.
  4. Set the refresh frequency. A daily refresh is suitable for most teams. Your BI Pixie subscription includes a daily refresh limit, which you can monitor on the Account page under Data Refreshes.
  5. Click Apply.

Note: Workspaces backed by a Power BI Pro license support up to 8 refreshes per day. For more frequent refreshes or large data volumes, use a Microsoft Fabric capacity. See Microsoft's data refresh documentation for details.

Customize the Dashboard

BI Pixie manages the installed items. The Lakehouse, Semantic Model, Report, and (on Direct Lake installs) the ETL Notebook are managed by BI Pixie. When you update the dashboard to a new version, BI Pixie replaces these items with the latest version, and any direct edits you made to them are not kept. Your tracking settings and engagement data are not affected. To keep your changes, customize a copy instead of the originals. BI Pixie never modifies your copies.

Recommended ways to customize without losing your work on the next update:

  • Build a thin report (recommended). Create a new Power BI report that connects live to the BI Pixie Dashboard semantic model. You get full design freedom, and the report is yours, so BI Pixie never changes it. This is the best path for most customizations.
  • Save a copy of the report. Open the BI Pixie Dashboard report in your workspace and use File > Save a copy to create your own editable version. Edit the copy freely; it stays live-connected to the semantic model.
  • Save a copy of the notebook. On Direct Lake installs, use the notebook's Save as option to fork the BI Pixie ETL notebook before you change its logic.
  • Add your own measures and tables. Put custom DAX measures in your thin report, and write any derived tables to a Lakehouse of your own rather than the managed one.
  • Share with your team. Share the Fabric workspace, or publish a Power BI app, so stakeholders can access engagement insights without needing access to the BI Pixie item.

You can edit the original report or model directly, for example to tweak a color before a one-off screenshot, but those edits are replaced the next time you update the dashboard. For anything you want to keep, customize a copy.

Because the data in the semantic model stays inside your own Microsoft Fabric tenant, you can also use Copilot and AI agents to query your usage data using natural language.
